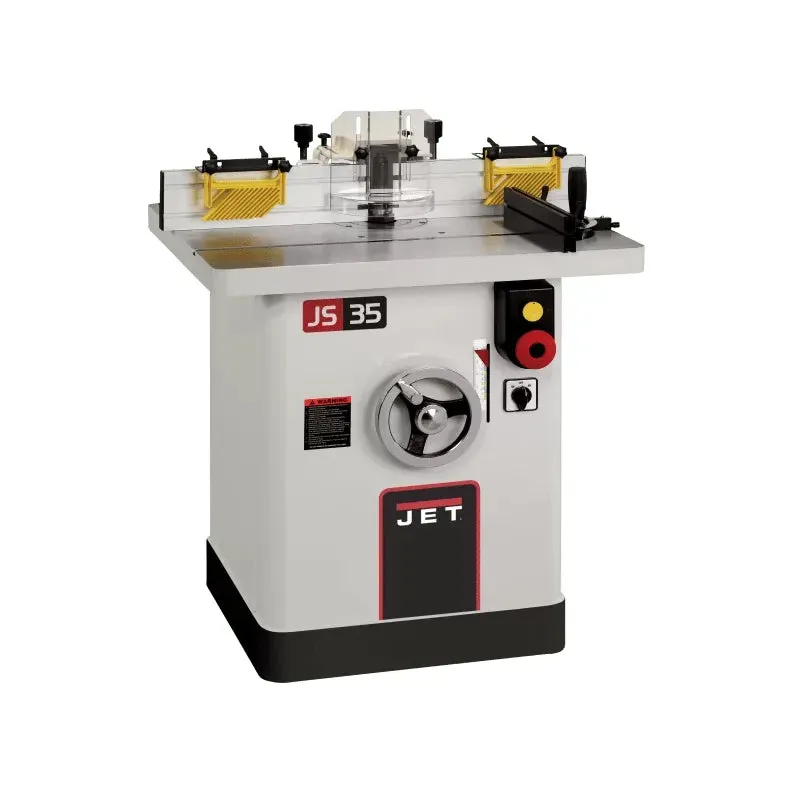

JET JWS-35X5-1, Industrial Shaper, 5HP 1PH JT9-708326

Product Description

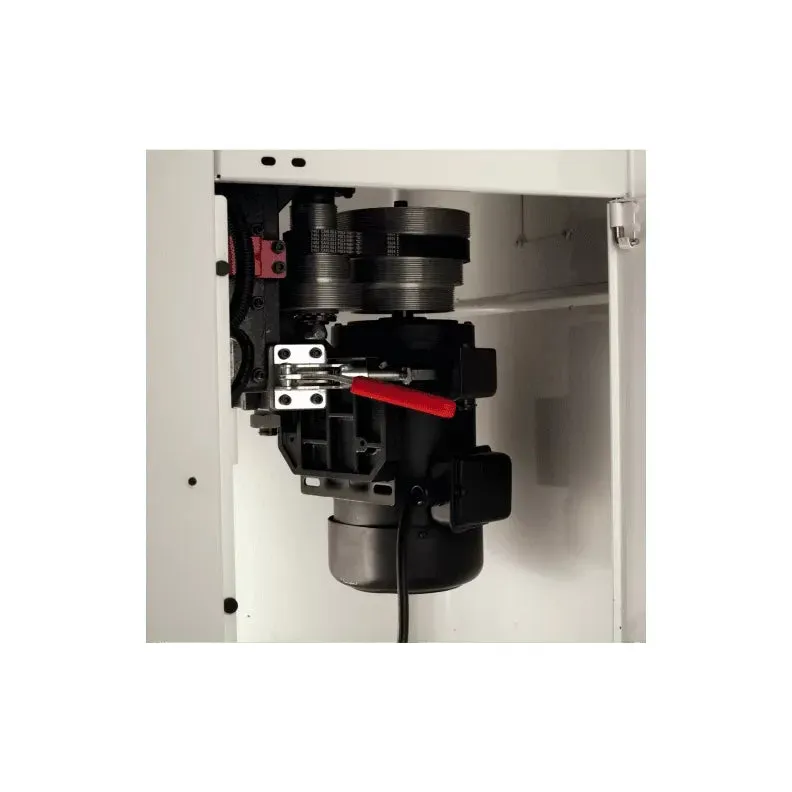

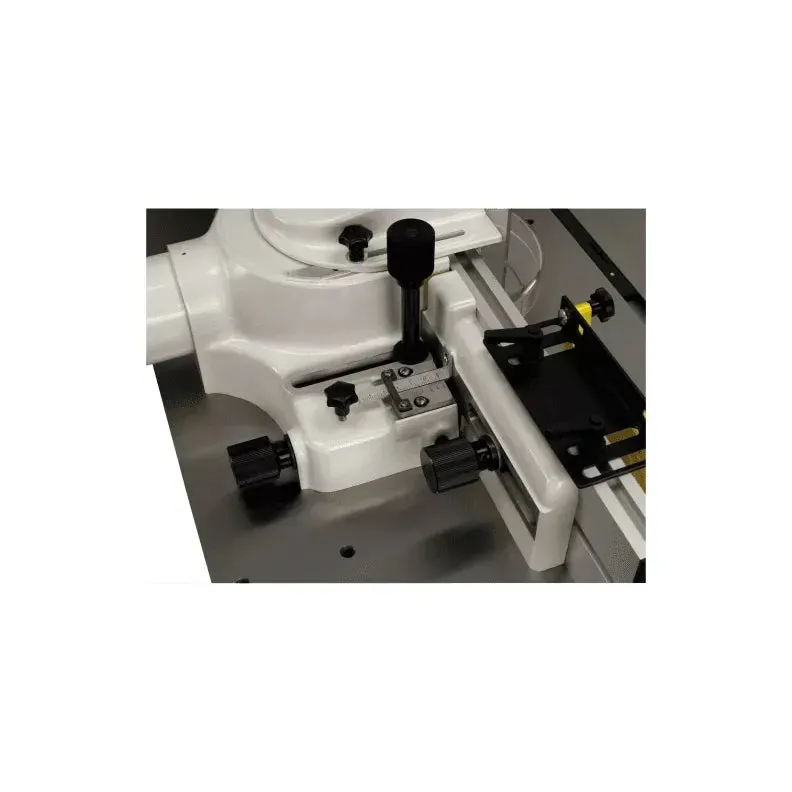

This heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

Features

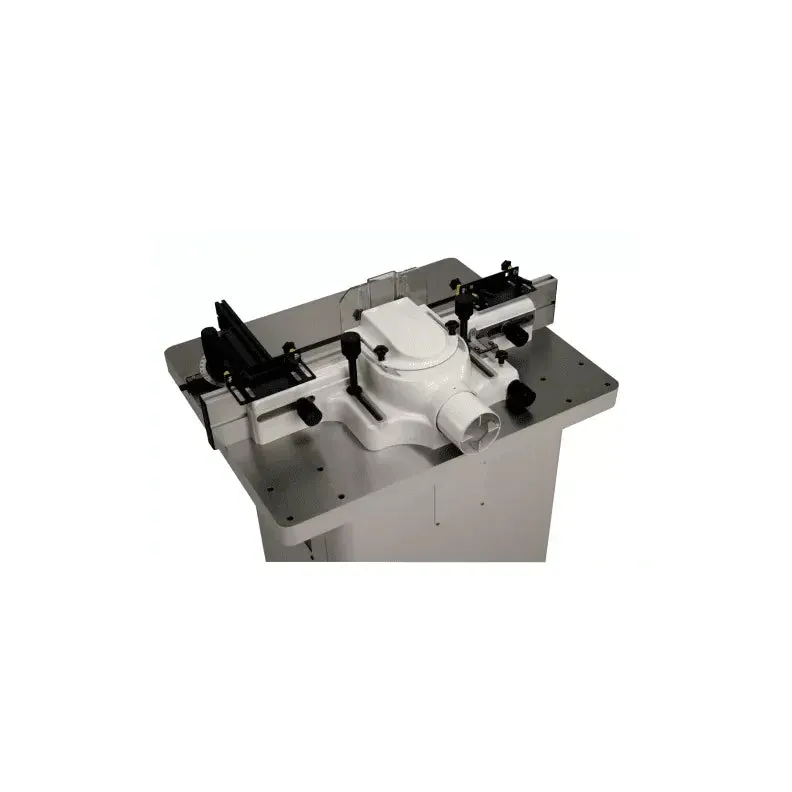

4" Dust port built into fence for convenient hookup to any dust collection system

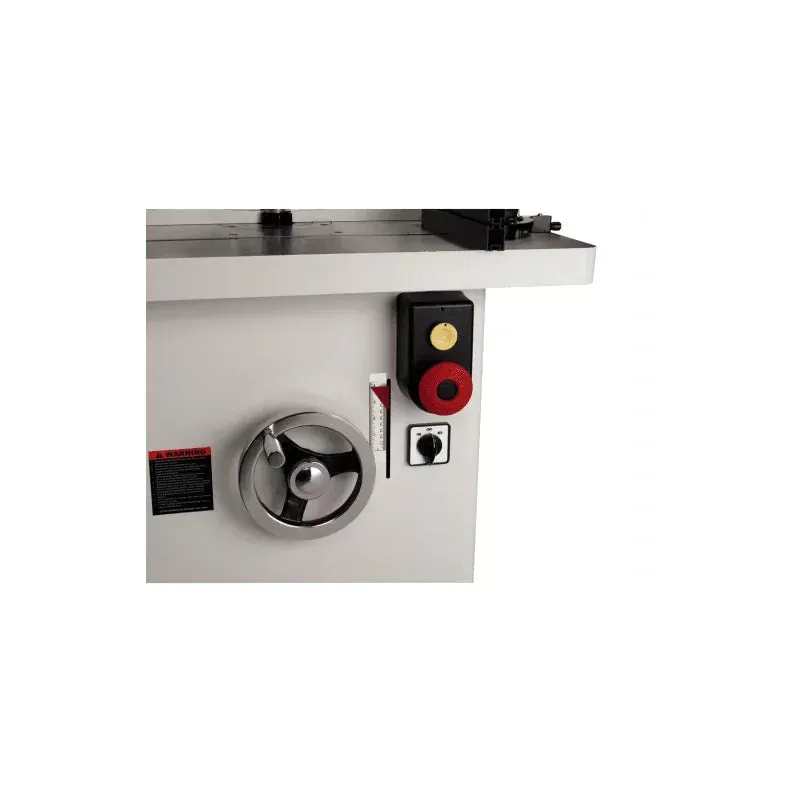

Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments

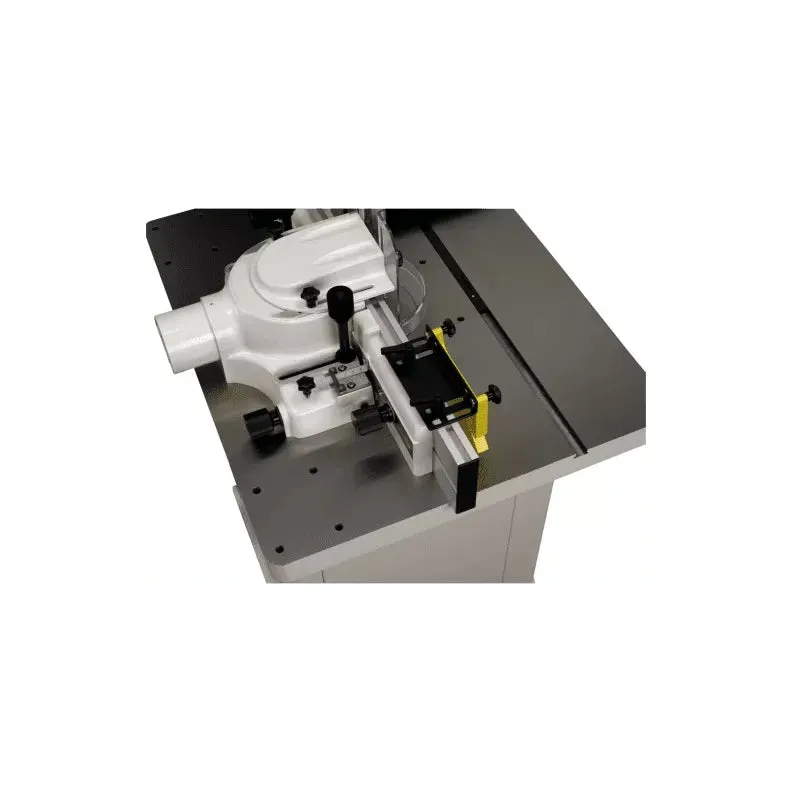

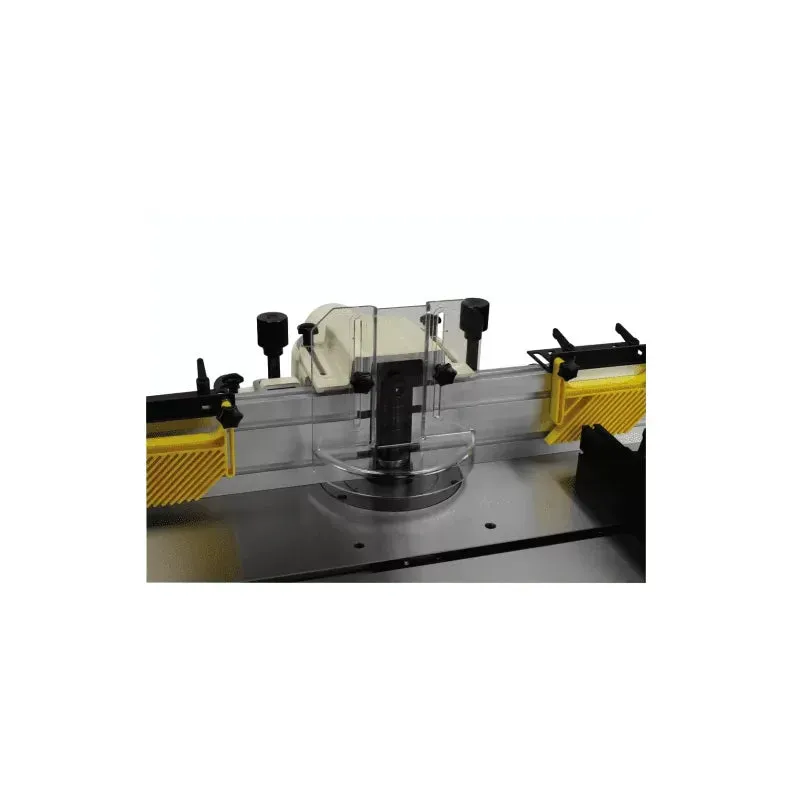

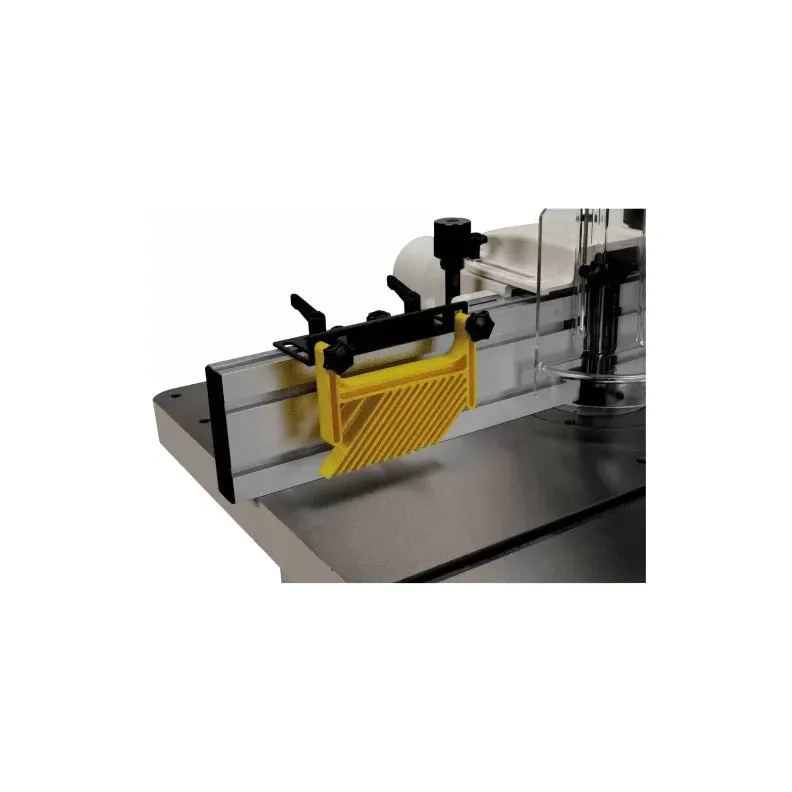

Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters

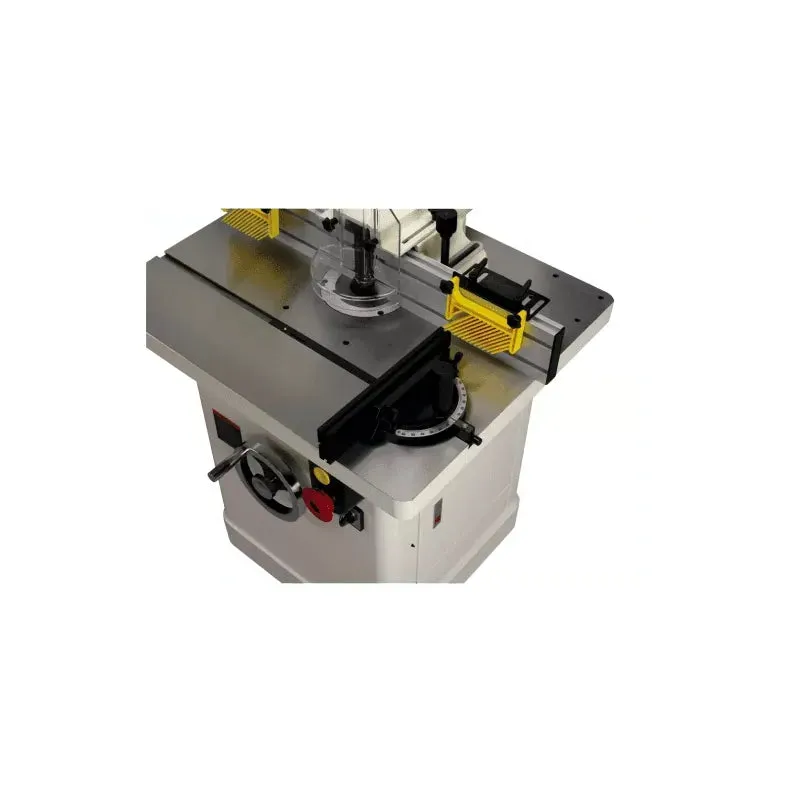

Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle
Powerful 5HP, 1Ph motor with magnetic controls
Reversible spindle speeds for diverse shaping jobs
Starting Pins for irregular shaping
V-belt transfers maximum power to the spindle

Specifications

Stock Number	JT9-708326
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	4
Maximum Spindle Diameter (In.)	1-1/4
Model Number	JWS-35X5-1
Motor Amps	17
Motor Power (HP)	5
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Spindle Size Under Nut (In.)	4
Spindle Travel (In.)	4
Table Height from Floor (In.)	33-1/4
Table Inserts (In.)	2
Table Opening Diameter (In.)	6-19/64
Table Size (L x W) (In.)	32-1/4 x 26-3/4
Warranty	5 Year
Gross Weight	550
